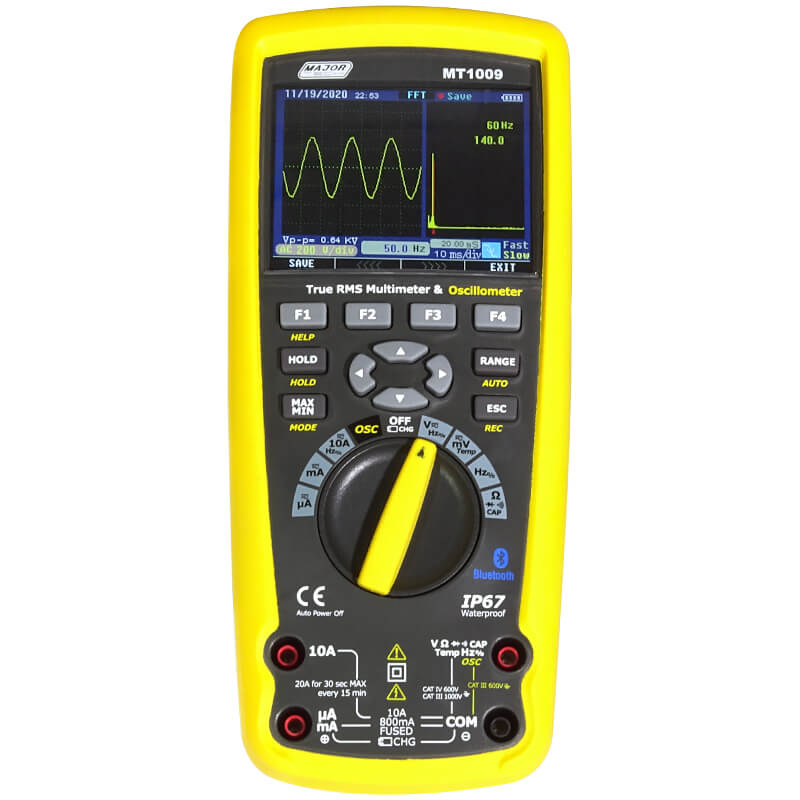

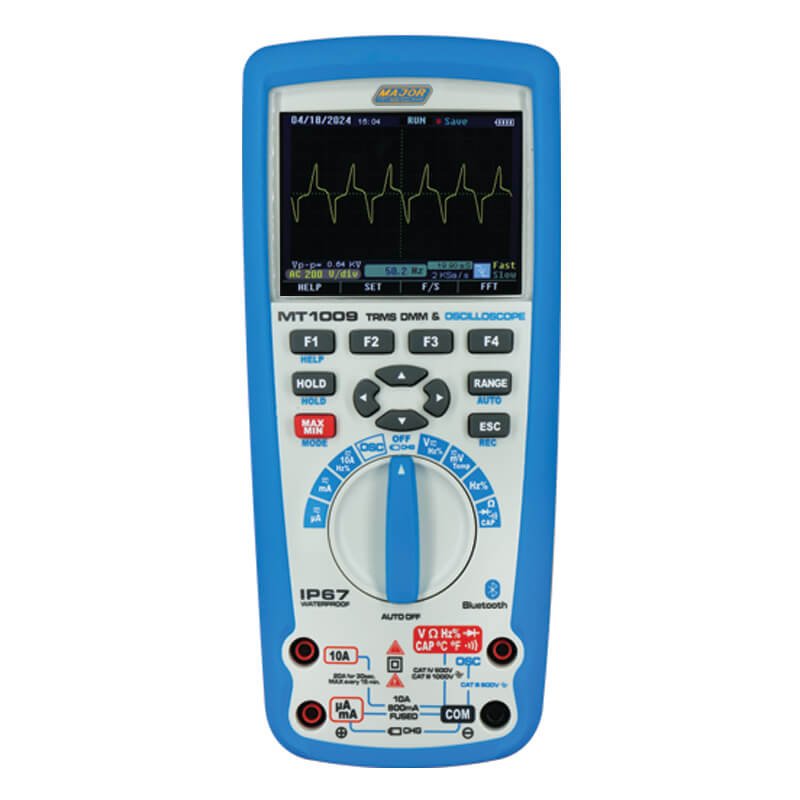

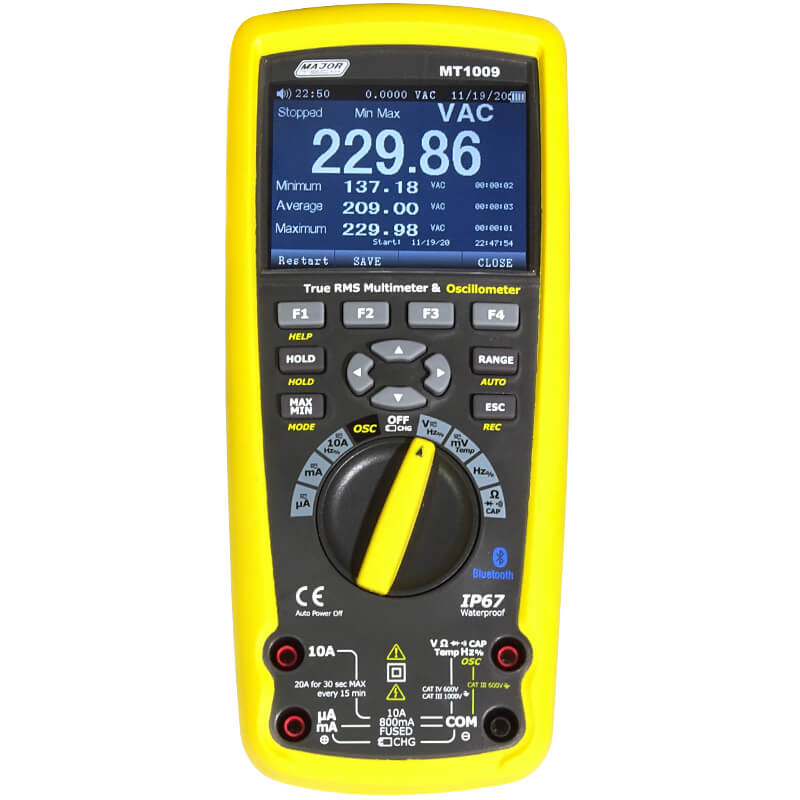

Multimeter 1500V True RMS Bluetooth and Oscilloscope IP67 MT1009
Couldn't load pickup availability
Your buddy needs to see this , use your preferred social media links to share this product
The MT1009 Oscilloscope and True RMS Multimeter has a fast sampling time, built-in data logging and Trend Capture features, plus it includes a 10MHz oscilloscope displayed on a colour screen. Using Bluetooth technology the captured data can be transferred to a computer for analysis of the datasheets. The oscilloscope function has a 10MHz bandwidth with a 50MS/s Real Time sample rate and cursors to assist the user with zoom in measurements – all displayed on a colour TFT display! With TFT colour display, this meter enables the user to trace and identify problems on equipment, and with the data logging & Trend Capture functions, it can be utilised as a standalone unit to log events!
The Oscilloscope is housed in a double moulded rubber casing with an IP67 waterproof design.
- CAT IV 600V and CAT III 1000V
- IP67 – Dust & Waterproof
- Large 50 000 Count 320 x 240 TFT colour LCD display/ Low pass filter
- AC and DC Voltage 1000V
- AC and DC TRMS Voltage 1000V
- AC Current 10A
- Resistance 50Mꭥ
- Frequency 10MHz
- Capacitance 10mF
- Temperature -50 to 1000˚C
- Duty Cycle 99.9%
- AC, AC + DC TRMS Measurements
- 10MHz / 50MS/s Bandwidth/ Real time sample rate
- Logging function with Trend Capture for easy review of logged data
- Bluetooth PC interface for easy data transfer & accuracy calibration
- Peak capture (records transients as fast as 250μs)
- Min/Max/Average with Time stamp (records signal fluctuations)
- Motor winding and low ohm (500) measurement range
- The Meterbox software supports Bluetooth products transferring the measured data to the customers’ smart phon
