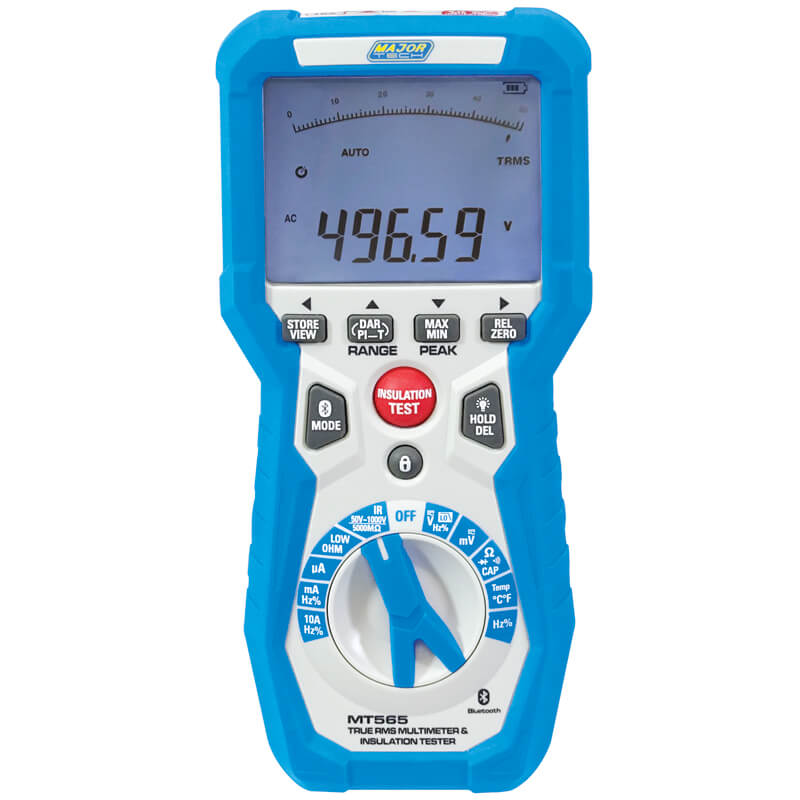

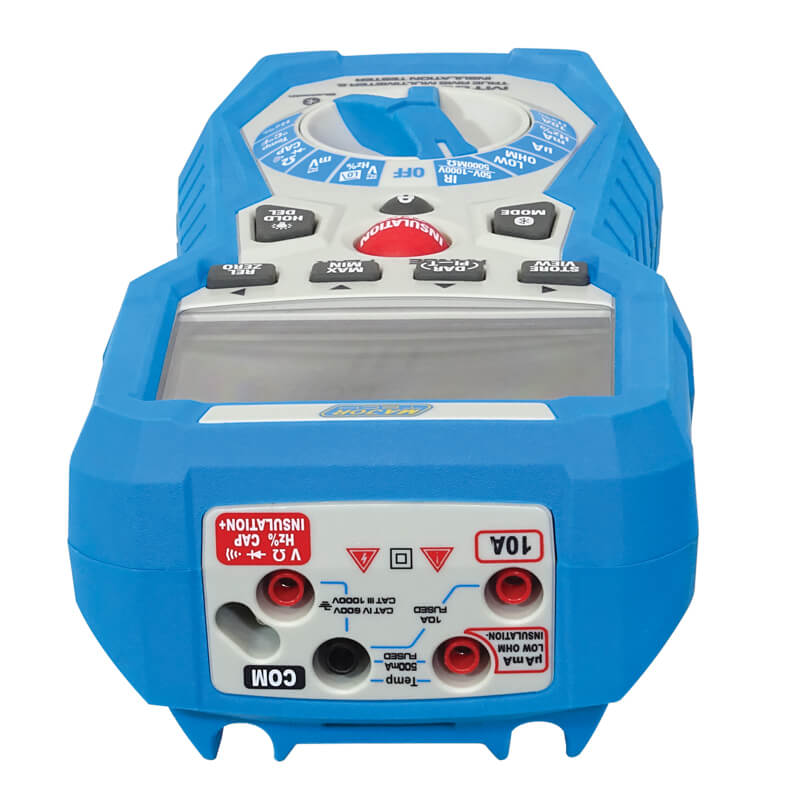

Insulation Tester Digital and Multimeter MT565

The MT565 is a Bluetooth Insulation Tester and Multimeter. The MT565 measures AC/DC voltage, AC/DC current, resistance, capacitance, frequency, duty cycle and temperature. The Low pass filter can accurately measure variable frequency drive (VFD) signals. The insulation tester offers 50V, 100V, 250V, 500V, and 1000V ranges with an insulation resistance up to 5000MΩ, DAR and Auto PI functions with adjustable time setting and an auto discharge. The Low Ohm function offers a resolution of 1mA and an open circuit voltage of 5V. The meter has a 50 000 count LCD dual display with an analogue bar graph, and the CAT IV 600V rating ensures the highest level of safety. The unit offers Bluetooth communication and an internal memory to store and transfer information. The Bluetooth app is available on both Android and iOS platforms. This provides maximum versatility and a wide range of features for both trouble shooting and preventative maintenance electricians.

• 50 000 count with analogue bargraph backlit LCD display
• Measures AC and DC voltage up to 1000V
• Measures AC and DC current up to 10A
• 5 insulation test ranges: 50V, 100V, 250V, 500V, 1000V
• Insulation Resistance up to 5GΩ
• Temperature measurement from -50⁰C to 1200⁰C
• Capacitance to 10mF
• Frequency to 10MHz
• Low Pass Filter for measurement of variable frequency drive (VFD)
• Peak Hold function for Voltage and Current measurements
• Download stored data to iOS or Android App via Bluetooth
• Continuity buzzer
• Min/Max and Data Hold function
• IP65 double moulded rugged waterproof housing
