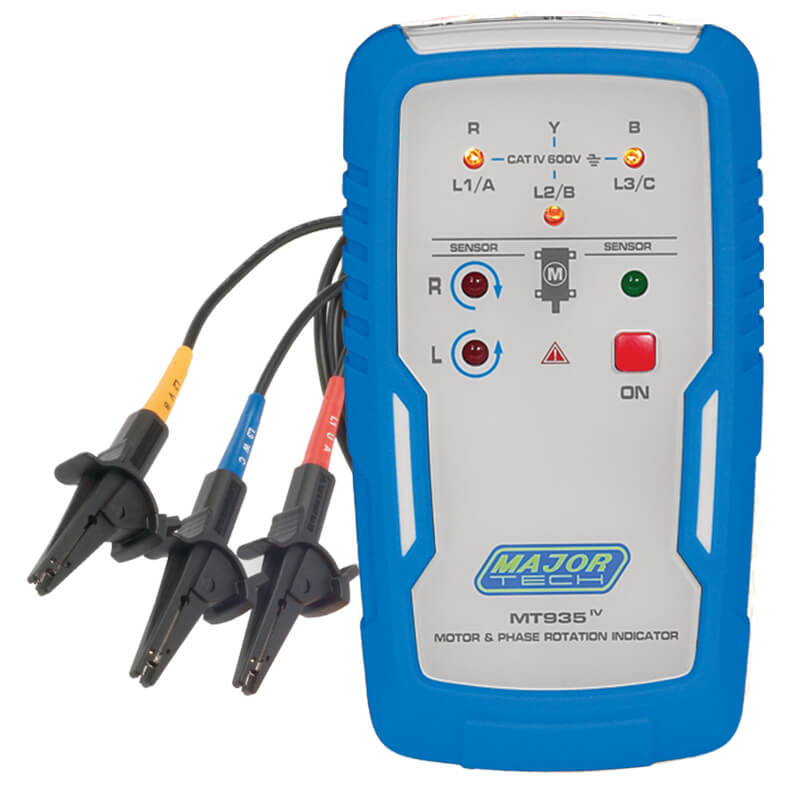

Phase Rotation and Dead Motor Meter MT935
Couldn't load pickup availability
Your buddy needs to see this , use your preferred social media links to share this product
The MT935 is a Dead Motor and Phase Rotation Meter compact and handheld, which is battery operated. The unit can be utilized on a 3 Phase powered system or on a 3 Phase unpowered motor without having to worry about damage to the tester. When used on a 3 Phase powered system the meter is a field indication instrument which displays all three phases by lighting up its corresponding lamp. It then displays the rotation for clockwise or anti clockwise on an LED. In 3 Phase motors it is possible to determine the motor connections U, V and W without mains voltage present, thus avoiding damage to pumps with reversed motor rotation. It operates from 1VAC to 400VAC.
- LED Indication
- Rotary field direction
- 3-Phase neon Indication
- Determines Motor Connection and magnetic Field Detection
- Double injection rubber housing
- Small lightweight and portable
- Voltage range from 1VAC to 400VAC
- Large size crocodile clips
